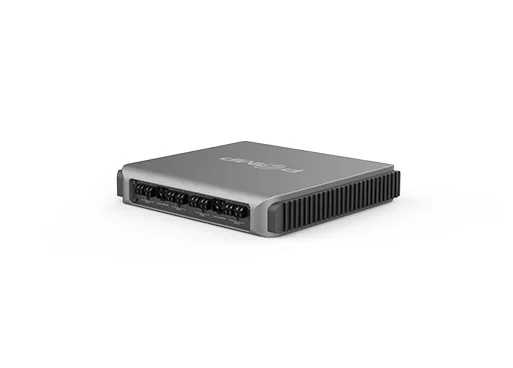

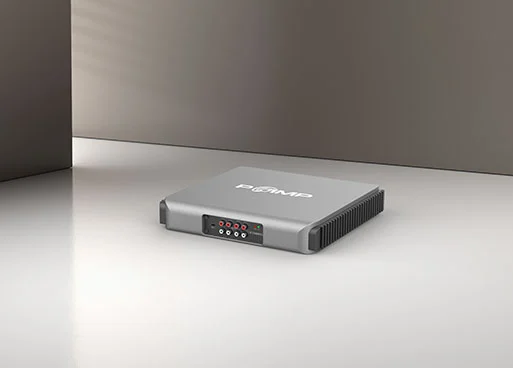

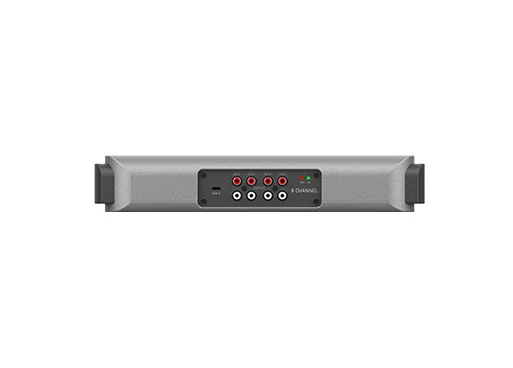

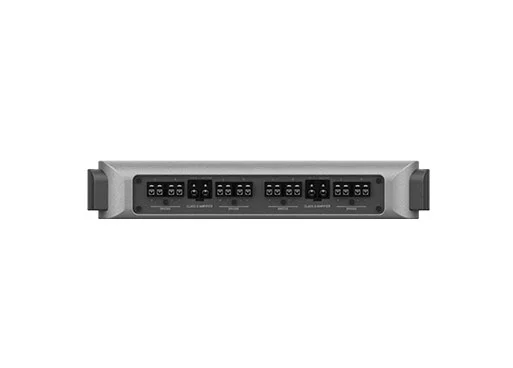

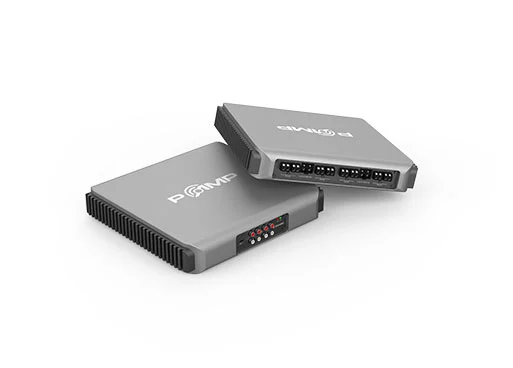

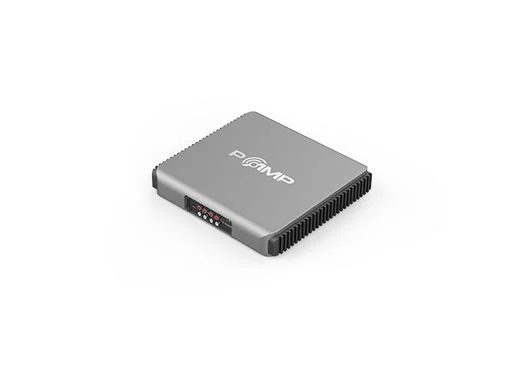

8 CHANNEL 800W CLASS D AMPLIFIER Aluminum Case. This DSP car amplifier has excellent signal processing ability, can accurately analyze and optimize each audio signal, choose DSP car amplifier, is to choose a high-quality music lifestyle!
Powerful Audio Processing: DSP amplifiers are capable of making precise adjustments to incoming audio signals, and they usually have multiple input and output channels.
Personalized sound settings: Parametric equalization adjustment, preset sound modes, and storable user settings.
High-efficiency power amplification: adopts digital amplification technology, featuring high efficiency and low distortion.
Convenient operation and connection: usually equipped with an intuitive user interface, some high-end DSP amplifiers also support remote control via cell phone APP, and some DSP amplifiers also support seamless connection with the car's original audio system.
| 8/800 | 8CHANNEL 800W CLASS D AMPLIFIER |
| Power Supply | |
| Power Supply voltage/fuse | 10.5V-15V/80A |
| Idling current(power ON/OFF) | 2.8A/0.04MA |
| Remote In | 6.5V-15V-4MA |
| Amplifier Stage | |
| Features: | |
| Distorsion THDN(1KHZ@4OHM) 10W: | 0.06% |
| Bandwidth: | 20HZ-20KHZ |
| S/N RATIO(A weighted @ 1V) | 90DB |
| Damping factor (1KHZ@4OHM) 10W: | 50 |
| Load impedance @ 8Ch | 2 ohm |
| @ 7Ch | 2ohm+2ohm+2ohm+2ohm+2ohm+2ohm+4ohm |
| @ 4Ch | 4 ohm |
| Output Power (RMS)14.4 VDC,THDN 1% | |
| 8 Ch | 50W*8(4 OHM) |
| 8 Ch | 100W*8(2 OHM) |
| 7 Ch | 50W*6(4 OHM)+200W*1(4 OHM) |
| 7 Ch | 100W*6(2 OHM)+200W*1(4 OHM) |
| 4 Ch | 200W*4(4 OHM) |
| Size | |
| Max size(mm) | L300*W300*H50mm |
